The IMAGE Mission

The Imager for Magnetopause-to-Aurora Global Explorer (IMAGE) was the first satellite mission dedicated to imaging the Earth's magnetosphere, the region of space dictated by the Earth's magnetic field which contains a complex plasma environment sourced by both interaction with the solar wind as well as the Earth's upper atmosphere. This region of space, which is invisible to typical optical observing methods, had previously only been studied by use of localized measurements with charged particle detectors, magnetometers, and electric field instruments. Instead of relying on such single point measurements, IMAGE used a host of novel imaging techniques to "see the invisible" and to produce the first global images of many of certain plasma populations within the Earth's magnetosphere. Employing these imaging techniques has allowed for observations of the Earth's plasma environment never before possible, providing observation of global-scale dynamics as a response to varying conditions from the Sun and Earth.

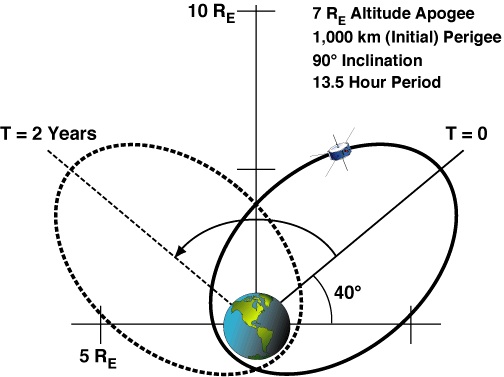

Figure 1: The high inclination and large apogee of the IMAGE orbit allow for a top-down view for global imaging of the Earth's plasma environment.
Image image_orbit

The EUV Instrument

The IMAGE extreme ultraviolet (EUV) instrument images the He+ distribution in the Earth's plasmasphere by detecting resonantly scattered solar 30.4-nm radiation. Since the plasmaspheric He+ emission is optically thin, the integrated column density of He+ along the line of sight through the plasmasphere is directly proportional to the intensity of the emission. Because of the IMAGE spacecraft's high apogee altitude (about 7 Earth radii), as shown in Figure 1, and the EUV imager's wide field of view, images generated from data acquired near apogee show the structure of the entire plasmasphere. An example showing several features captured by the IMAGE EUV image are shown in Figure 2.

Figure 2: A canonical example EUV image of Earth's plasmasphere.
Image euv_illustration

Plasmaspheric Dynamics

The structure and dynamics of the plasmasphere are highly sensitive to the geomagnetic disturbance activity that occurs regularly within the Earth's magnetosphere. The cycles of erosion and refilling of the plasma population in the plasmasphere have been studied extensively in the past but from the relatively limited perspective of individual ground stations and satellite crossings of the plasmapause and plasmasphere. Data available from the Extreme Ultraviolet Imager (EUV) on the IMAGE satellite allow us, for the first time, to study the plasmasphere system from a global perspective.

The plasmasphere is a central element in many of the complex interactions within the magnetosphere, and thus knowledge of its dynamics on a global scale is important for a variety of reasons. First of all, the size and shape of the plasmasphere give an indication, although in a complex integral sense, of the recent time history of magnetospheric convection, an important global process within the magnetosphere (see Spasojevic et al. (2003)). Convection in the inner magnetosphere is complex and not accurately described in the simple, but widely used, global models. Secondly, the plasmasphere contains a large of amount of mass, and during geomagnetic disturbances a significant amount of that mass is removed (see Spasojevic and Sandel (2010). This large-scale mass redistribution can significantly effect other coupling processes, including dayside reconnection.

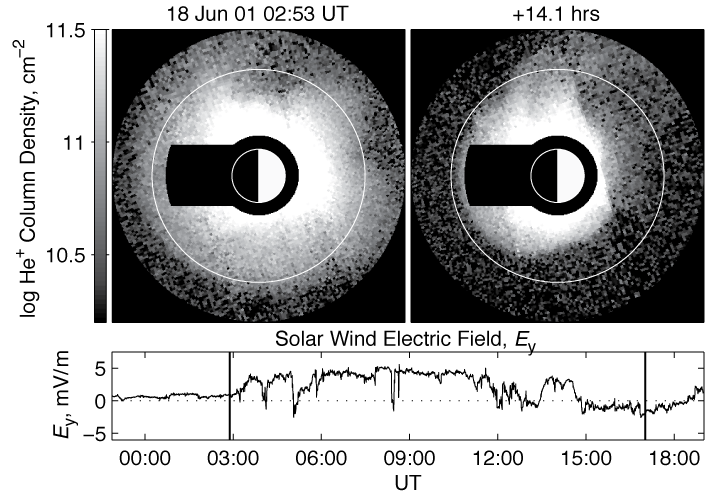

Figure: An example of the dramatic erosion of the plasmasphere observed by the IMAGE EUV instrument. In a 14-hr period, nearly 80 metric tons of plasma were removed from the inner magnetosphere as a result of the solar wind driven convection. Ongoing research strives to quantify these losses as a function of solar wind driving as well as to understand the implications of this mass redistribution on various magnetospheric coupling processes.
Image fig_loss18

Finally, the cold plasma density is a fundamental parameter in the generation and propagation of plasma waves and the interaction of these waves with energetic particles. Wave-particle interactions play an important role in the loss (through precipitation into the upper atmosphere) of energetic particles (Spasojevic et al., 2004; Spasojevic and Fuselier, 2009; Spasojevic et al., 2005) and may also contribute to the storm-time acceleration of radiation belt electrons (Spasojevic and Inan, 2005; Horne et al., 2005).

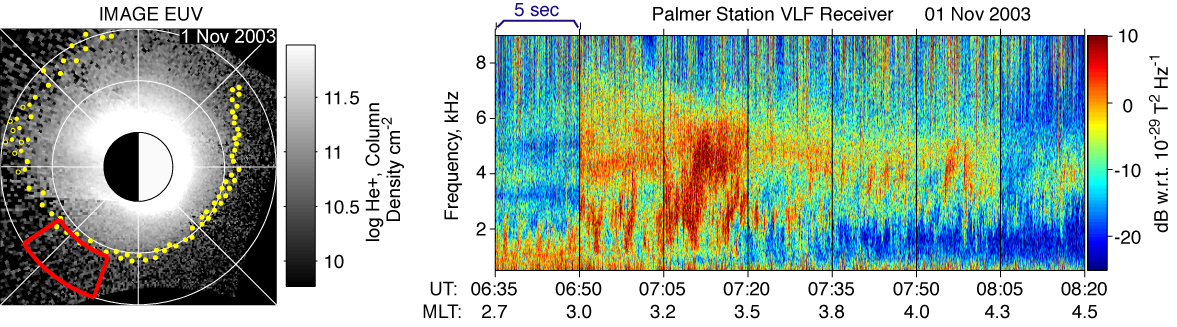

Figure 4: The severe erosion of the plasmapause during the so-called Halloween Storm of 2003 (left) is believed to have led to the formation of a new electron radiation belt in a region normally devoid of energetic particles. The eroded plasmapause led to wave-driven electron acceleration by magnetospheric chorus emissions such as were observed at Palmer Station, Antarctica (right). The location of the plasmasphere boundary, or the plasmapause, on the morningside determines the spatial extent of the chorus acceleration region. The variation of the morningside plasmapause in response to varying solar wind conditions is currently not well understood.
Image halloween


This research is funded by the National Aeronautics and Space Administration (NASA), the National Science Foundation (NSF) under the Geospace Environment Modeling (GEM) inititative, and the NASA Living With a Star (LWS) Heliophysics Postdoctoral Fellowship Program, administered by the UCAR Visiting Scientist Programs (VSP).


Horne, R. B., et al., Wave acceleration of electrons in the Van Allen radiation belts, , 437, 227-230, 2005.

Spasojevic, M., and S. A. Fuselier, Temporal evolution of proton precipitation associated with the plasmaspheric plume, J. Geophys. Res. (Space Phys.), 114, 12,201, 2009.

Spasojevic, M., and U. S. Inan, Ground based vlf observations near l = 2.5 during the halloween 2003 storm, Geophysical Research Letters, 32, 21,103, 2005.

Spasojevic, M., and B. R. Sandel, Global estimates of plasmaspheric losses during moderate disturbance intervals, Annales Geophysicae, 28, 27-36, 2010.

Spasojevic, M., J. Goldstein, D. L. Carpenter, U. S. Inan, B. R. Sandel, M. B. Moldwin, and B. W. Reinisch, Global response of the plasmasphere to a geomagnetic disturbance, J. Geophys. Res. (Space Phys.), 108, 1340, 2003.

Spasojevic, M., H. U. Frey, M. F. Thomsen, S. A. Fuselier, S. P. Gary, B. R. Sandel, and U. S. Inan, The link between a detached subauroral proton arc and a plasmaspheric plume, Geophys. Res. Lett., 31, 4803, 2004.

Spasojevic, M., M. F. Thomsen, P. J. Chi, and B. R. Sandel, Afternoon Subauroral Proton Precipitation Resulting from Ring Current-Plasmasphere Interaction, Washington DC American Geophysical Union Geophysical Monograph Series, 159, 85, 2005.
